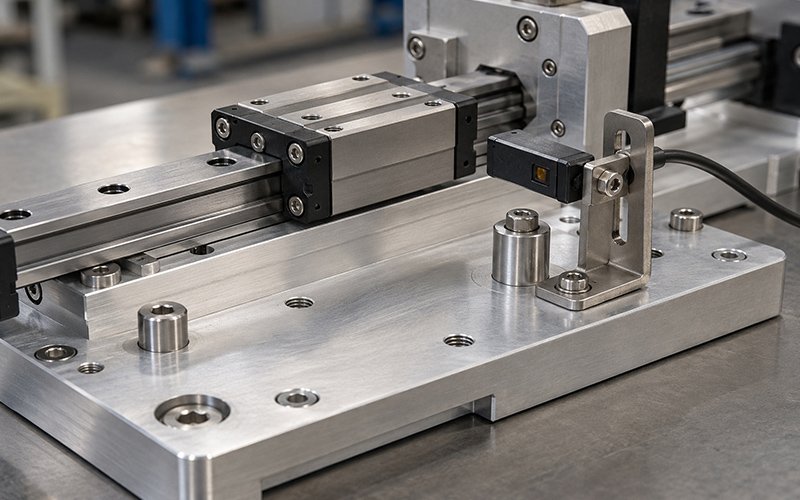

Industrial automation equipment brings together moving mechanisms, sensors, drives and protective structures. Behind those assemblies are mounting plates, brackets, spacers, housings and other metal components that hold everything in position.
Some parts need accurate machining. Others can be cut, bent, stamped or welded. Choosing the manufacturing method depends on what the component does, how it connects to the equipment and how many pieces are required.

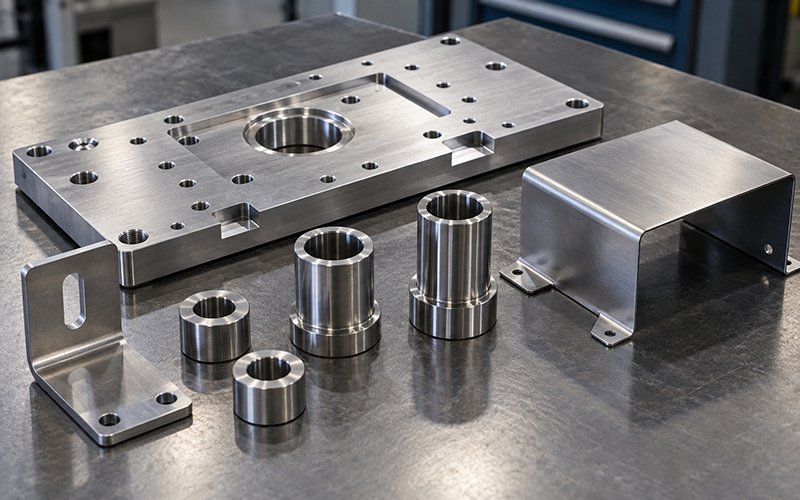

Custom metal components appear throughout automated equipment, from the machine frame to the smallest locating part.
Component | Main Function | Typical Manufacturing Consideration |
Mounting plate | Supports and positions equipment components | Hole locations and mounting surfaces |
Sensor bracket | Holds a sensor in its working position | Bend angle and adjustment range |
Sleeve or spacer | Controls position or separation | Diameter, length and shoulder dimensions |
Protective cover | Separates moving areas and protects components | Clearance, edge condition and access |
Equipment housing | Supports or encloses an assembly | Internal space and mating interfaces |
These industrial equipment components may look straightforward individually, but their dimensions affect how the complete machine fits together.
Material selection should reflect the component’s load, movement and exposure.
Steel may be considered for supports where rigidity matters. Aluminum can be useful when reducing component weight is important. Stainless steel may be selected where moisture or cleaning conditions require greater corrosion resistance.
The grade still needs to match the design. Specifying only “steel” or “aluminum” leaves important differences in strength, formability and processing behavior unresolved.
Surface treatment should be considered at the same stage, especially where coatings affect locating features or electrical contact areas.
CNC machining is useful for mounting faces, bores, locating holes and other features that require dimensional control. CNC turning can produce sleeves, spacers and components with rotational geometry.
Sheet metal fabrication provides options for covers and brackets through cutting and bending. Stamping may be considered for established designs with repeat demand, while welded structures may require machining after fabrication to establish accurate mounting surfaces.
The same part can sometimes be produced by different routes. Order quantity, design stability and secondary operations help determine which is practical.
For custom machine parts, the most important dimensions are often those connecting one component to another.
A mounting face may establish alignment. A hole pattern may position a drive unit. A shoulder may determine where a bearing or spacer sits.
Clear datums help manufacturing and inspection use the same references. Apply tight tolerances to functional features rather than assigning the same precision to every dimension.
For assemblies containing several custom parts, review how dimensional variation accumulates across the complete arrangement.
Check whether fasteners remain accessible after surrounding components are installed. Sensor brackets may need adjustment space, and covers should be removable where routine servicing requires access.
Edges and openings also need attention. A sharp edge near a cable or an undersized maintenance opening can create problems even when the part meets its overall dimensions.
For repeat orders, keep a record of any fitting changes made in the workshop. An enlarged hole or added shim may solve the immediate problem, but the next batch will repeat it unless the drawing is updated. Feeding those changes back to the supplier helps prevent unnecessary rework on deliveries.
Inspection should focus on the features that control installation and function. Depending on the design, an assembly trial or checking fixture may help verify relationships between several features.
Xinlongji’s manufacturing services include CNC machining, metal stamping, laser cutting, bending and welding. Contact us with your drawings and project requirements to discuss a suitable manufacturing route for your components and the interfaces they need to maintain.
