For high-volume metal components, progressive-die stamping delivers the lowest piece price and the most consistent quality - but it requires upfront tooling investment. Buyers who understand how die cost, die life, and volume interact make far better sourcing decisions.
Here is a transparent breakdown.
What Is Progressive Die Stamping?

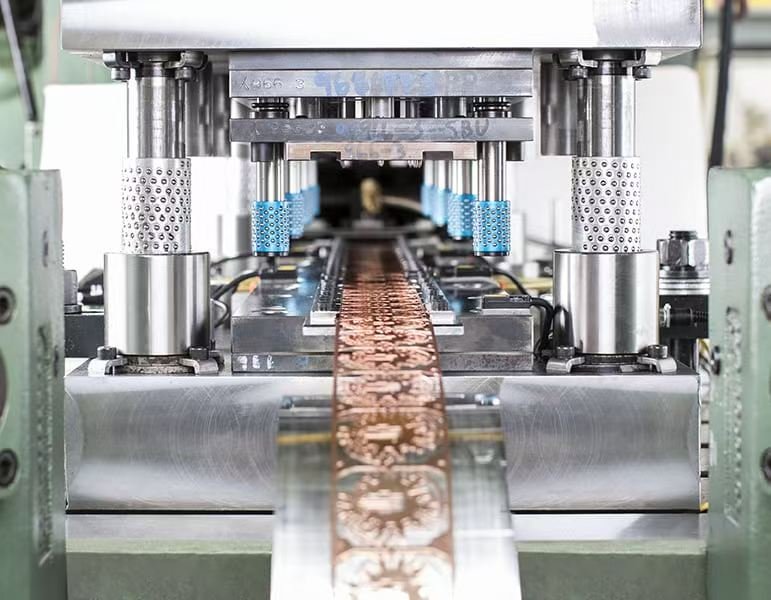

A progressive die feeds a coil of metal through a series of stations in a single press. Each stroke performs one operation - blanking, piercing, bending, drawing, coining - while the strip advances. At the final station, the finished part separates from the carrier. One press can produce thousands of parts per hour.
Tooling Cost: What Drives the Price
A custom progressive die typically ranges widely based on:
Part size and sheet thickness - larger, thicker parts need bigger, heavier die sets
Number of stations / complexity - more bends, draws, and forms = more stations
Tolerance and die material - tighter tolerances need carbide or premium tool steels
Die life requirement - production class vs. medium-run tooling
As a budget indicator, simple progressive tooling starts in the low thousands of dollars, while complex, high-life automotive dies run higher. We always provide a fixed tooling quote after reviewing your drawing - no surprises.
Lead Time
Tool design and build: typically 4-6 weeks
First-article samples: within that window for your approval
Mass production: 15-30 days after sample sign-off
Tight projects can be expedited; the schedule is quoted up front.
Die Life and Cost Per Part
Progressive dies are built to produce hundreds of thousands to millions of strokes with routine maintenance. When you amortize tooling over the program life, the per-part tooling cost often drops to pennies - which is why progressive stamping wins decisively at volume.
When Progressive Stamping Pays Off
Annual Volume | Recommended Approach |
1 - 1,000 | CNC machining or laser-cut + forming |
1,000 - 5,000 | Single-stage / soft tooling |
5,000+ | Progressive die becomes attractive |
50,000 - 1,000,000+ | Progressive die is strongly optimal |
Protecting Your Tooling Investment
At Xinlongji, tooling is your property, stored and maintained by us for the program's life. We perform routine die maintenance, track shot counts, and alert you before wear affects tolerances.
Customer Review
"We needed 40,000 brackets a quarter and were paying too much for laser-cut-and-fold parts. Xinlongji built a progressive die that folded six operations into one press. Piece price dropped roughly 40%, cosmetic consistency improved, and they send maintenance updates so we've never had an unexpected tooling failure."
— Owner, repair-parts and aftermarket supplier, Poland
FAQ
Q: How much does a progressive stamping die cost?
A: It depends on part size, thickness, complexity, and required die life. Simple tools start at a few thousand dollars; we provide a fixed quote after a free DFM review of your drawing.
Q: How long does it take to build a die?
A: Typically 4-6 weeks including samples, then 15-30 days for the first production run.
Q: Who owns the die?
A: You own it. We build, store, and maintain it on your behalf for as long as you order the part.
Q: What if my volume is too low for a progressive die?
A: We'll recommend single-stage tooling, laser-cut blanks with forming, or CNC machining - whichever hits your target price at your volume.
Q: Can the die be modified if my design changes?
A: Minor changes can often be accommodated; major geometry changes may require a new die, which is why we emphasize DFM review before tool build.
