A poorly designed stamping die can increase tooling costs, create dimensional problems, and delay mass production. For engineers developing metal components and buyers sourcing high-volume parts, getting the design right from the beginning is essential.
Progressive die stamping helps manufacturers produce complex metal parts efficiently by combining multiple operations in one continuous process. However, production performance depends on more than press speed. Strip layout, station sequence, material selection, tolerances, and tooling quality all influence the final cost.
This guide explains the key principles of progressive die stamping, the design decisions that affect manufacturing efficiency, and how to evaluate progressive die cost before placing an order.

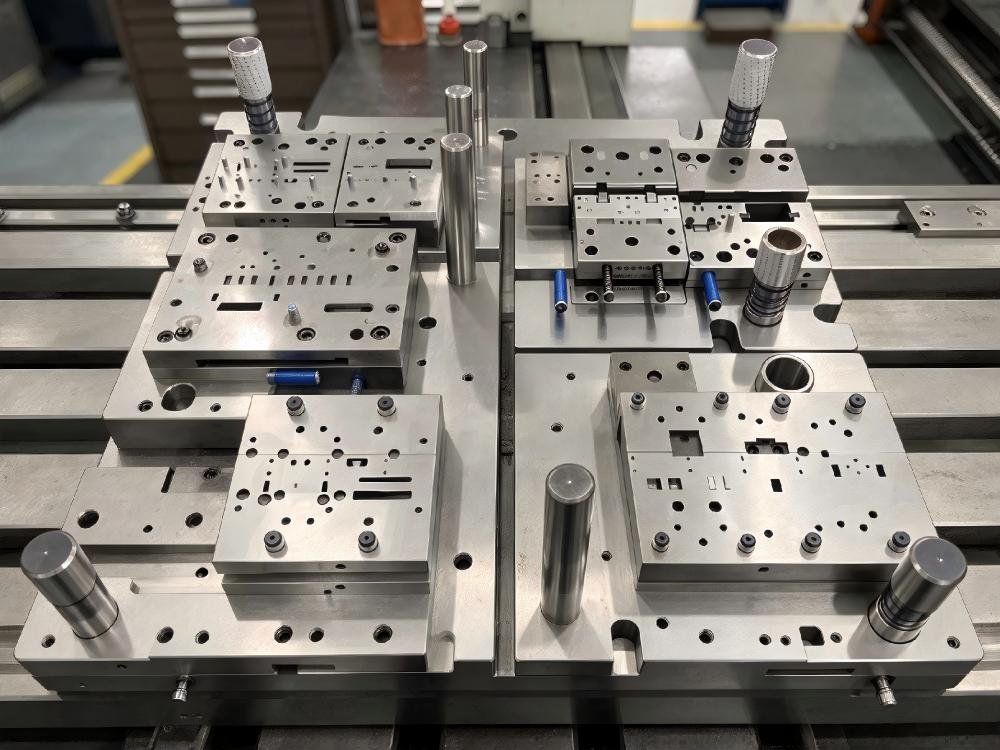

Progressive die stamping is a manufacturing process in which sheet metal or coil stock passes through multiple stations within a single die. Each station performs an operation such as piercing, notching, bending, or forming. As the strip advances with each press stroke, different features are produced simultaneously.
Once production reaches steady state, a finished part is typically produced with every stroke. This makes the process suitable for automotive brackets, electrical contacts, clips, electronic components, and other parts required in consistent quantities.
Compared with separate stamping operations, progressive tooling reduces repeated handling and can improve production consistency. However, the initial tooling investment makes it less attractive for some prototypes and low-volume orders, where laser cutting or CNC machining may be more economical.
Strip layout determines part orientation, feed pitch, carrier design, and material consumption. Efficient nesting can reduce scrap, but minimizing material usage without considering strip stability may cause feeding errors or part deformation.
Engineers should evaluate coil width, material grain direction, scrap removal, and carrier strength together. The goal is to achieve good material utilization while maintaining reliable feeding throughout the production cycle.
A progressive die may combine piercing, notching, bending, forming, and final cut-off. The sequence must allow each feature to be produced without interfering with later operations.
Too few stations can make individual operations more complex, while unnecessary stations increase tooling size and cost. A suitable sequence balances part geometry, forming loads, tool accessibility, and production stability.
Material selection affects forming force, springback, tool wear, corrosion resistance, and unit cost.
Material | Common applications | Key consideration |
Low-carbon steel | Brackets and mounting parts | Cost and formability |
Stainless steel | Corrosion-resistant components | Grade and springback |
Aluminum | Lightweight automotive and electronic parts | Cracking and deformation |
Copper and brass | Electrical contacts and connectors | Conductivity and edge quality |
Titanium alloys | Specialized automotive and industrial components | Material cost and forming requirements |
Material grade, thickness, temper, and surface condition should be confirmed before tooling begins. A material substitution after die design may require changes to clearances, forming geometry, and process settings.
Punch-to-die clearance affects cutting force, burr formation, edge quality, and tool life. The appropriate value depends on material properties and thickness, so it should be established through engineering calculations and validated during tool trials.
Bending operations also require attention to bend radius, grain direction, and springback. These factors can affect final dimensions and assembly fit.
Avoid specifying extremely tight tolerances for every feature. Instead, identify dimensions that affect function, fit, and safety. If stamping cannot consistently meet a critical tolerance, secondary CNC machining may be necessary.
Progressive die cost includes tooling design and manufacture, raw material, press time, scrap, maintenance, inspection, and secondary operations such as plating or welding.
The main cost factors are:
Tooling complexity: More stations, precision features, and special mechanisms can increase die design and manufacturing costs.
Material utilization: Strip layout directly affects how much purchased material becomes scrap.
Production volume: Higher volumes can spread the initial tooling investment across more parts.
Quality requirements: Tight tolerances, special inspection, and traceability may add costs.
Secondary processing: Finishing, machining, and assembly must be included when comparing quotations.
Progressive stamping is often attractive for repeat, high-volume production. For smaller orders, laser cutting, CNC machining, or simpler stamping methods may require less upfront investment.
To control cost, review part geometry before tooling, optimize strip layout, specify functional tolerances, and confirm expected demand. Buyers should also clarify die ownership, maintenance charges, sampling costs, and which secondary operations are included in the quotation.
The lowest tooling price does not always mean the lowest long-term cost. Frequent repairs, excessive scrap, and unstable production can outweigh initial savings.
Problem | Possible solution |
Excessive burrs | Check cutting clearance, tool wear, and alignment. |
Feeding errors | Verify feed pitch, pilots, and strip guidance. |
Cracking during bending | Review material condition, bend radius, and grain direction. |
Dimensional variation | Check springback, tooling wear, and press stability. |
High scrap rate | Improve strip layout and forming sequence. |
Trial production and first-piece inspection help identify problems before mass production. Corrective actions should be based on measurement results and root-cause analysis rather than repeated tooling adjustments without clear evidence.
A reliable supplier should evaluate both part design and production requirements before quoting.
Look for in-house engineering and tooling capabilities, suitable stamping equipment, experience with your material, and a clear process for die trials and dimensional inspection. Ask how the supplier controls critical features, handles nonconforming parts, maintains tooling, and manages engineering changes.
The quotation should identify tooling charges, unit pricing assumptions, material specifications, sampling, secondary operations, and lead time. Providing complete drawings and realistic order forecasts helps suppliers assess feasibility and prepare comparable offers.
Qingdao Xinlongji Metal Manufacturing Co., Ltd. provides custom metal manufacturing services, including metal stamping, mold design and manufacturing, CNC machining, welding, and other supporting processes.
For suitable projects, coordinating these capabilities can simplify production management and reduce handoffs between suppliers. Xinlongji also has experience with titanium alloy components and automotive-related metal parts, which require careful evaluation of material properties and forming requirements.
To assess a project, provide a 2D drawing or 3D model, material and thickness specifications, critical tolerances, surface requirements, and expected production volume. These details help establish whether progressive die stamping is suitable and what tooling and secondary operations may be required.
What production volume justifies progressive die stamping?
There is no universal minimum. The decision depends on tooling investment, part complexity, unit cost, order quantity, and expected product life. Compare total costs at your forecast volumes before selecting a process.
How long does progressive die tooling take?
The schedule depends on die complexity, station count, material availability, and trial corrections. Ask for separate estimates covering design, tooling manufacture, sampling, approval, and production.
Which materials can be used for progressive die stamping?
Common options include low-carbon steel, stainless steel, aluminum, copper, and brass. Specialized alloys may also be possible when the supplier has suitable equipment and verified process experience.
What information is needed for a quotation?
Provide drawings, material grade and thickness, critical tolerances, surface finish requirements, order quantity, annual demand, and applicable quality standards.
Successful progressive die stamping starts with a design that balances part function, material efficiency, tooling complexity, and production volume. Early engineering review can reduce scrap, prevent costly revisions, and improve long-term manufacturing economics.
