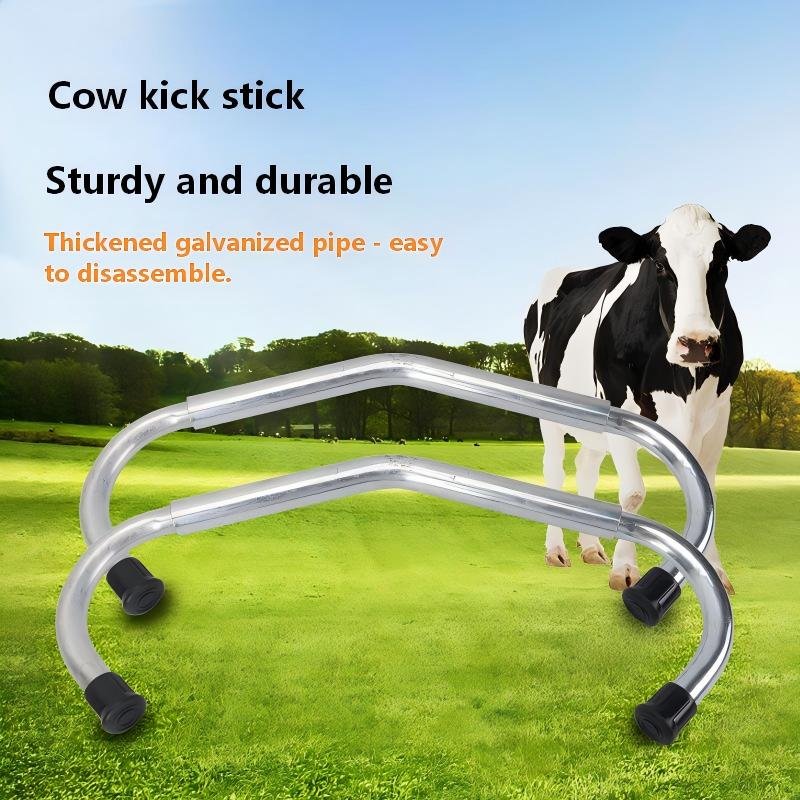

Veterinary anti-kicking stick

Production Process: Core CNC Metal Sheet Bending (Detailed English Steps) + Supplementary Processes

The manufacturing of veterinary anti-kicking sticks takes precision CNC metal sheet bending as the core process, combined with targeted supplementary technologies to meet the high safety and durability requirements of veterinary equipment. The detailed steps of the metal sheet bending process are as follows:

1. Step 1: Raw Material Selection & Pre-Inspection - We select high-performance metal sheets tailored for veterinary equipment, mainly including 304 stainless steel (1.2mm-2.5mm), 316L stainless steel (1.8mm-2.5mm) and hot-dip galvanized carbon steel (1.5mm-3.0mm). Each batch of raw materials undergoes strict quality inspection: chemical composition analysis to confirm material purity and corrosion resistance, thickness uniformity test (tolerance ±0.05mm) and surface defect detection (no rust, cracks, burrs or impurities). Qualified sheets are cut into preliminary blanks using high-precision laser cutting machines, which strictly match the size requirements of different anti-kicking stick models (customized for small livestock like sheep and large livestock like cattle).

2. Step 2: Pre-Bending Pretreatment - The edges of the cut blanks are deburred by mechanical polishing to eliminate sharp corners, avoiding scratches on veterinary staff and livestock during use. Subsequently, the blanks are subjected to degreasing and cleaning processes to remove surface oil stains, dust and oxide layers—this step is critical to improving bending precision and ensuring the adhesion of subsequent surface treatments. For stainless steel blanks, an additional passivation process is performed to form a protective oxide film on the surface, enhancing corrosion resistance and adapting to the frequent disinfection needs of veterinary equipment.

3. Step 3: CNC Bending Parameter Setting & Positioning - The pretreated blanks are firmly clamped on the workbench of our 35-400 tons CNC bending machines. Our technicians input customized parameters (bending angle, bending radius, number of bending stations and sheet thickness) into the intelligent control system according to the structural design of the anti-kicking stick (e.g., the arc curvature of the blocking part and the angle of the handle connection). The system automatically adjusts the gap between the upper and lower dies and enables angle compensation technology (optimized for thin-gauge metal sheets) to ensure the target bending precision (±0.5°). Before mass production, a trial bending is conducted on a sample blank to verify the accuracy of parameters and avoid batch defects.

4. Step 4: Precision Bending & Structure Formation - The CNC bending machine performs step-by-step bending to shape the core structure of the veterinary anti-kicking stick. First, it bends the metal sheet into an arc-shaped blocking part (the core anti-kicking component) with precise curvature to fit the body contours of livestock; then, it completes the bending of the handle connection part and the fixed bracket. During the entire process, the machine's real-time monitoring system dynamically tracks the bending angle and sheet deformation, making timely parameter adjustments to maintain angle repeatability (±0.1°), thus ensuring consistent anti-kicking performance of each product.

5. Step 5: Post-Bending Inspection & Finishing - The bent parts are removed from the machine and comprehensively inspected using a Coordinate Measuring Machine (CMM). Parts that do not meet the standards are reworked or re-bent. After inspection, a second deburring process is carried out to ensure all edges are smooth, and the parts are cleaned again to prepare for subsequent supplementary processes.

Supplementary Processes: To enhance product performance and usability, we add two key supplementary processes: ① Precision Welding: We use argon arc welding to connect the bent main body with non-slip handles (rubber or metal) and fixed components, ensuring firm weld seams and no oxidation. ② Surface Finishing: For stainless steel products, mechanical polishing (Ra≤0.8μm) is performed to improve surface smoothness; for carbon steel products, hot-dip galvanizing (coating thickness ≥65μm) is applied to enhance corrosion resistance; 316L stainless steel products can also be optionally electropolished for higher disinfection resistance. The final quality inspection includes an anti-impact test (withstanding ≥200N impact without deformation) and a surface adhesion test to ensure product qualification.

Product Classification by Industry, Material & Part Type

Key Technical Parameters (Precise & Customizable)

Our Core Competitiveness

• Professional Technical Team: We have 15+ senior engineers with over 10 years of experience in metal bending and veterinary equipment manufacturing. We provide 24/7 technical support for custom anti-kicking stick design (tailored to different livestock breeds) and complete custom mold development in 5-8 workdays, specializing in solving precision control problems of thin-gauge metal sheet bending.

• Strong Production Capacity: Equipped with more than 20 sets of 35-400 tons high-performance CNC bending machines (optimized for thin-gauge sheets), paired with 15+ supporting laser cutting, welding and surface treatment production lines. Our annual production capacity of veterinary anti-kicking stick parts exceeds 5 million pieces, with an on-time delivery rate of 99% for global orders.

• Strict Quality Management System: Implement full-process quality control, covering raw material grade verification, real-time monitoring of bending precision during production, and final anti-impact/corrosion resistance testing. Our product qualification rate reaches 99.8%, and we hold ISO 9001:2015 and CE certifications, complying with international veterinary equipment safety standards.

• Improved Supply Chain: We have long-term strategic cooperation with well-known certified raw material suppliers (such as Baoshan Iron & Steel and Chalco). The independent purchasing-processing-production chain eliminates middlemen, ensuring stable supply of high-quality materials and cost advantages. The raw material traceability rate is 100%.

• Global Shipping & Reliable After-Sales Service: Our professional foreign trade team is proficient in FOB, CIF and other international trade terms, and cooperates with DHL, FedEx, Maersk and other well-known logistics companies to provide worldwide. We provide complete customs clearance documents (including material certification, product test report and certificate of origin). We offer a 1-year product warranty; for quality issues caused by production, we provide free replacement or refund. Our after-sales team responds to technical and quality inquiries within 24 hours.

Credibility Highlights

• We have served more than 60 B2B clients in over 20 countries (covering Europe, North America, Southeast Asia, Australia, Africa), including 10+ global leading veterinary equipment manufacturers and 30+ large-scale livestock breeding groups.

• Production Process Visualization: Upon request, we provide live factory videos and detailed recording of the anti-kicking stick bending process (including parameter setting, precision bending and quality inspection). Our ISO 9001:2015 certified workshop welcomes on-site audits to verify production capacity, quality control level and processing technology.

• Third-Party Certification: We can provide SGS/TUV test reports for material grade, bending strength, anti-impact performance and corrosion resistance (316L stainless steel products pass salt spray test for ≥1200 hours). For every order, we provide complete raw material traceability certificates and batch test reports.

• We have been a long-term strategic supplier for major veterinary equipment brands. We have maintained zero defect feedback for 5 consecutive years in the cooperation of veterinary anti-kicking sticks, and are highly recognized by clients for product safety, durability and adaptability to diverse veterinary scenarios.

If you have drawings (CAD/STEP/IGES files) or detailed requirements (target livestock breed, product size, material preference) for veterinary anti-kicking sticks, please send them to us! We will provide a personalized process plan, quotation and sample proposal within 24 hours.

FAQ

Q1: How do you ensure quality?

A: We have a fully equipped quality inspection center, complete testing equipment, and a strict ISO 9001 quality management system. Each sheet metal stamping part is tested for dimensions, mechanical properties, and surface finish before delivery to ensure stable quality and compliance with international standards.

Q2: What are the prices of the Sheet Metal Stamping Parts?

A: Prices depend on several factors, including raw materials, tolerances,  surface treatments, and order quantity. Since Xinlongji Metal  owns and manages integrated stamping factories, we can provide competitive real-time quotations while maintaining stable product quality for every batch of custom sheet metal parts.

Q3: How can I get a better price?

A: All our prices are based on high-quality standards. With the same material and precision, our sheet stamping parts are more cost-effective because of supply chain integration. Larger orders or long-term cooperation projects can help you obtain even better prices and stable supply support.

Q4: What's the MOQ for Sheet Metal Stamping Parts?

A: MOQ depends on product size, complexity, and raw material type. You can send us 2D or 3D drawings, and we will evaluate production feasibility and confirm the MOQ. Xinlongji Metal guarantees flexibility for trial runs and supports small batches for initial testing.

Q5: What is your delivery cycle?

A: Delivery time is typically around 30 days. Complex parts or larger orders may require slightly longer schedules. Our integrated factories coordinate production, packaging, and shipment efficiently. In most cases, we can complete orders within 45 days while ensuring consistent quality and timely delivery.

Q6: What surface finishes do you offer?

A: We offer powder coating, galvanizing, anodizing, sandblasting, and more through long-term partnerships with surface treatment factories. Surface finishing choices depend on material, environment, and functional requirements. Xinlongji Metal provides the most suitable solution for every sheet metal stamping part based on its intended application.

Q7: Which countries do you ship to?

A: Qingdao Xinlongji Metal Manufacturing Co., Ltd. exports sheet metal stamping parts to more than 60 countries across Europe, North America, South America, Africa, and Southeast Asia. Our logistics team ensures timely shipping and helps clients manage customs procedures and freight costs effectively for each destination.

Q8: What size Sheet Metal Stamping Parts can you produce?

A: Our 800-ton punching machine supports various part sizes. The feasible dimensions depend on material, thickness, shape, and process complexity. You can send us 2D or 3D drawings (NDA available), and we'll evaluate production feasibility and provide a cost-effective solution for your project.

Q9: What information do I need to provide to get a quote?

A: Please provide:

2D/3D drawings or samples;

Quantity and delivery terms;

Material, surface treatment, tolerance, and weight.

The more detailed the information, the faster we can offer an accurate quotation for your custom sheet metal stamping parts project.

Q10: What payment methods and delivery terms do you support?

A: We support  T/T, and other payment methods. Delivery terms include FOB, CIF, and EXW. If you have specific requirements, we'll assess them carefully to ensure smooth cooperation and secure international transactions for all sheet metal parts orders.

Q11: Is  Xinlongji Metal  a factory, manufacturer, or trading company of Sheet Metal Stamping Parts?

A: Xinlongji Metal is a professional OEM sheet metal stamping parts manufacturer with strong factory resources and integrated supply chain management. Our team covers engineering, procurement, production, logistics, and after-sales to provide one-stop metal stamping solutions for global customers.
