A fuel or oil line is one of those components nobody notices until it fails — and when it does, the result is a leak, a callback, or a warranty claim. For anyone sourcing custom fluid-line assemblies, the difference between a reliable part and a problem one comes down to a handful of engineering decisions made long before the first unit ships.
This guide walks through how automotive fuel and oil line assemblies are built, what to specify, and how a custom auto parts manufacturer controls quality — so you can source with confidence, whether you're an OEM buyer, a wholesaler or a performance modifier.
What Is a Fuel / Oil Line Assembly?
A line assembly is a complete, ready-to-fit fluid path, not just a length of tube. It typically combines:
· Tubing or hose — rigid bent metal tube, flexible reinforced hose, or a hybrid of both
· End fittings — threaded connectors, banjos, quick-connects, flares or unions
· Joints — crimped, brazed or welded connections between hose/tube and fittings
· Mounting hardware — brackets, clips, shields and grommets
Because an assembly only performs as well as its weakest joint, the key is that fittings, bending, joining and testing are controlled together — ideally in one factory. When the machine shop, the bender and the assembly bench are three different vendors, a leaking joint becomes a finger-pointing exercise. That single-factory control is one of the reasons buyers treat fluid lines like other OEM auto sheet metal parts and consolidate them with one supplier.
Rigid Tubing vs Flexible Hose: Which to Use
Rigid metal tubing
Used for fixed routing along the chassis or engine block where movement is minimal. It holds shape precisely, tolerates heat, and gives a clean, factory look. Best for fuel feed/return rails, oil cooler hard lines, brake lines and coolant pipes. Materials: stainless steel, coated steel, aluminum, copper.
Flexible reinforced hose
Used where the engine moves on its mounts, where vibration is high, or where service access is needed. Best for turbo oil feed/return, connections to moving components and retrofit builds. Construction: rubber or fluoroelastomer liner with textile/steel braid reinforcement, rated for fuel/oil and temperature.
Hybrid assemblies
Most real-world assemblies are hybrids — a bent hard line that transitions to a short flexible section at the engine. Getting the transition crimped and routed correctly is where experience matters most.

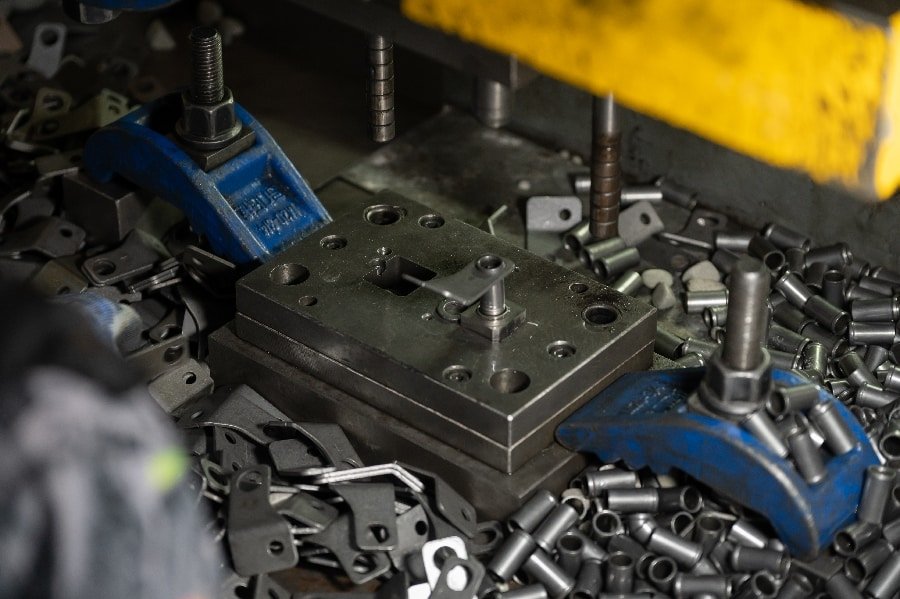

Image alt: precision copper and metal tube components machined for automotive line assemblies
Fitting and Connection Types
The fitting defines the seal, so it deserves the most attention in your specification:
· SAE / JIC flare (37°) — general hydraulic and oil connections
· Metric / DIN bubble & flare — European and Asian OEM fuel/brake lines
· ORB (O-ring boss) — high-pressure, vibration-resistant ports
· NPT / BSPP threaded — industrial and cooler connections
· Quick-connect (push-fit) — modern OEM fuel and vapor lines
· Banjo fittings — compact, bolt-through oil connections
A common sourcing mistake is specifying a catalog fitting that “almost matches.” In-house CNC turning and milling lets a factory machine the fitting to your exact thread, seat angle and orientation — so the sealing surface is controlled rather than hoped for. This is the same precision buyers rely on for CNC machined components [link: /process].
How a Custom Line Assembly Is Made
Understanding the process helps you spot where defects originate.
1. Engineering & DFM review. The factory reviews your drawing or sample for bend radii (too tight and the tube kinks or thins), fitting orientation, material choice and pressure rating — and flags issues before cutting metal.
2. Fitting machining. End connectors, banjos and unions are CNC-turned and milled to spec, then deburred.
3. Tube bending. CNC tube benders form complex 3D routing with repeatable angles and end positions so the line drops into place without forcing.
4. End forming & joining. Tube ends are flared, beaded or expanded; hose sections are crimped with ferrules or brazed/welded to metal ends. Crimp diameter and braze quality directly determine leak performance.
5. Surface finishing. Zinc, Zn/Ni, passivation, anodizing or powder coating for corrosion resistance — important for under-hood and under-chassis exposure.
6. Pressure / leak testing & FAI. Assemblies are pressure tested, and first articles are dimensionally inspected against the approved sample before production is released.
Image alt: CNC-turned banjo and flare end fittings for automotive fuel and oil hose assemblies
Materials and Corrosion: Don't Under-specify
Under-vehicle and under-hood lines see heat, salt, moisture and vibration. Key choices:
· Stainless steel (304/316) — best corrosion resistance, common for brake and long-life lines
· Coated steel (Zn/Ni, zinc, E-coat) — cost-effective corrosion protection for high-volume OEM work
· Aluminum — lightweight, good for coolers and low-pressure routing
· Hose liners — must be rated for the fluid (fuel vs oil vs coolant) and temperature range; a fuel hose used on hot oil, or vice versa, will fail early
For export programs, material certificates (e.g., EN 10204 3.1) and salt-spray results on plated parts give incoming-quality teams the documentation they need.
What to Include in Your RFQ
A complete request gets you an accurate quote fast. Include:
· Drawing or sample (STEP / PDF / CAD, or a physical part to reverse-engineer)
· Tube OD and wall thickness
· Material and finish
· Fitting types / thread specs at each end
· Fluid, working pressure and temperature range
· Hose rating where flexible sections are used
· Annual / order quantity
Missing the pressure or fluid detail is the most frequent cause of a wrong first quote — a line built for coolant won't survive turbo oil temperatures.
What Buyers Tell Us
Consolidating fluid lines with the same supplier that makes their brackets and panels is a recurring theme in customer feedback:
“We add fuel and oil cooler line assemblies to the same container as our panel orders. The fittings thread on correctly, the routing matches our samples, and we haven't had a sealing failure across repeat batches. One supplier for both lines and brackets makes our purchasing much simpler.” — Purchasing Manager, auto parts wholesaler, Germany
“For turbo and performance builds we need custom oil feed and return lines in odd routings. They bend them to our drawings, machine the fittings and pressure-test before shipping. The first sample fit on the engine — that's rare with custom lines.” — Owner, performance & modification dealer, UAE
The pattern is the same as with our stamped and sheet metal parts [link: /products]: buyers reward fit-on-first-install, repeatable quality and honest engineering feedback — not the lowest sticker price that leaks two months later.
Image alt: in-house production and pressure leak testing of automotive line assemblies
Frequently Asked Questions
Can you work from a sample instead of a drawing?
Yes — we reverse-engineer from a physical sample, confirm material and dimensions, and supply a first article for approval.
Do you pressure-test assemblies?
Yes. Assemblies are pressure/leak tested, with material certificates and inspection reports available on request for export orders.
Can fittings, brackets and lines be supplied as one kit?
Yes — fittings are machined and brackets stamped in the same factory, so a complete matched kit can ship under one PO.
Source Your Line Assemblies With One Accountable Supplier
If you're looking for an auto spare parts supplier in China that can handle custom fuel lines, oil cooler hose assemblies, turbo lines and the brackets that mount them — from a single prototype to repeat container orders — we'd like to quote it.
Send your drawing (STEP / PDF / CAD) or a sample with tube size, fitting type, material, working pressure and quantity. Our engineering team will respond with DFM feedback and a quote, typically within 24 hours.
