When you send a drawing to a Chinese metal parts factory, one of the first questions an engineer asks is simple: should this part be machined or stamped?
It sounds like a technical detail, but the answer directly affects your unit price, tooling cost, lead time, tolerances, and even how the part performs in the field. Choose the wrong process and a part that should cost $0.80 can end up costing $8.00 — or a high-volume order can carry unnecessary tooling fees.
At Xinlongji, we run both CNC machining and metal stamping in-house, along with die casting, sheet metal fabrication and injection molding. Because we don't have to push every job toward a single process, we can give you an unbiased recommendation. Here's how we decide.
Before comparing numbers, it helps to understand what each process actually does.

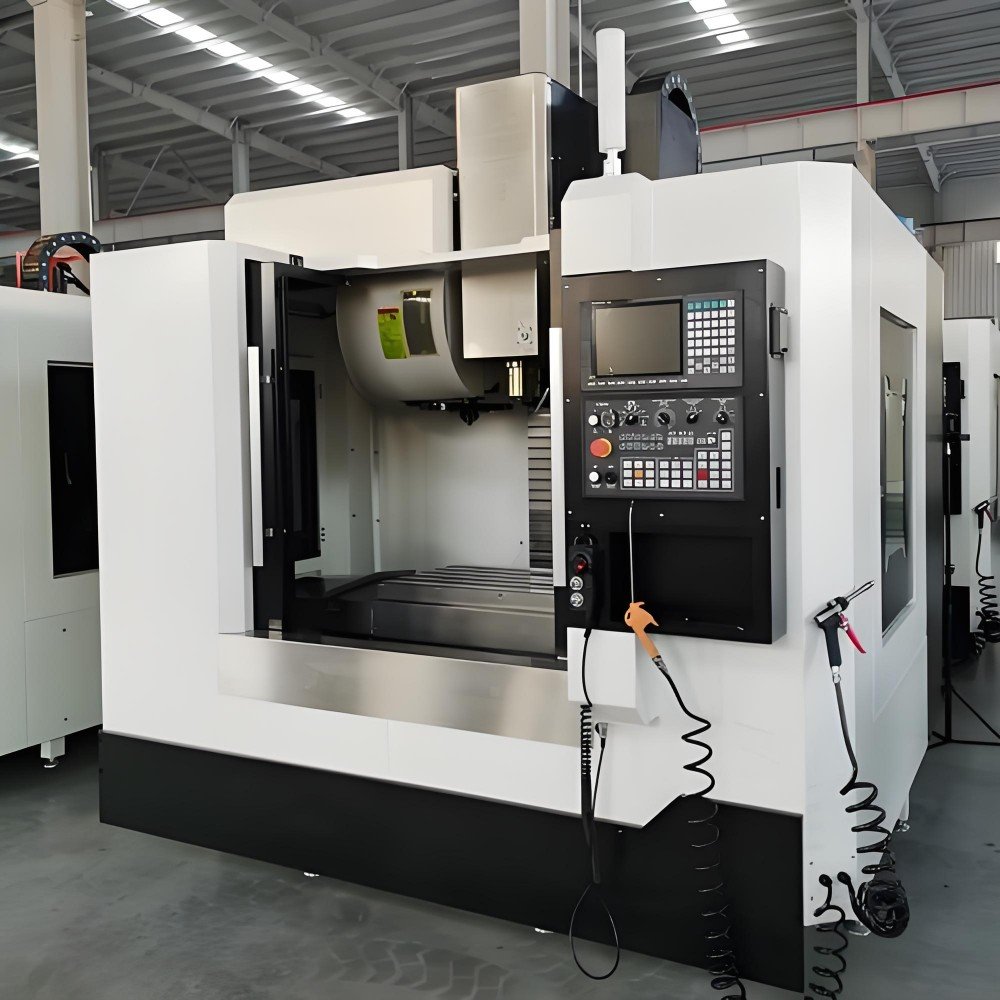

CNC machining is subtractive. A solid block or bar of metal is clamped into a milling machine or lathe, and cutting tools remove material until the part shape remains. There is no custom mold or die — the machine follows your CAD file directly.

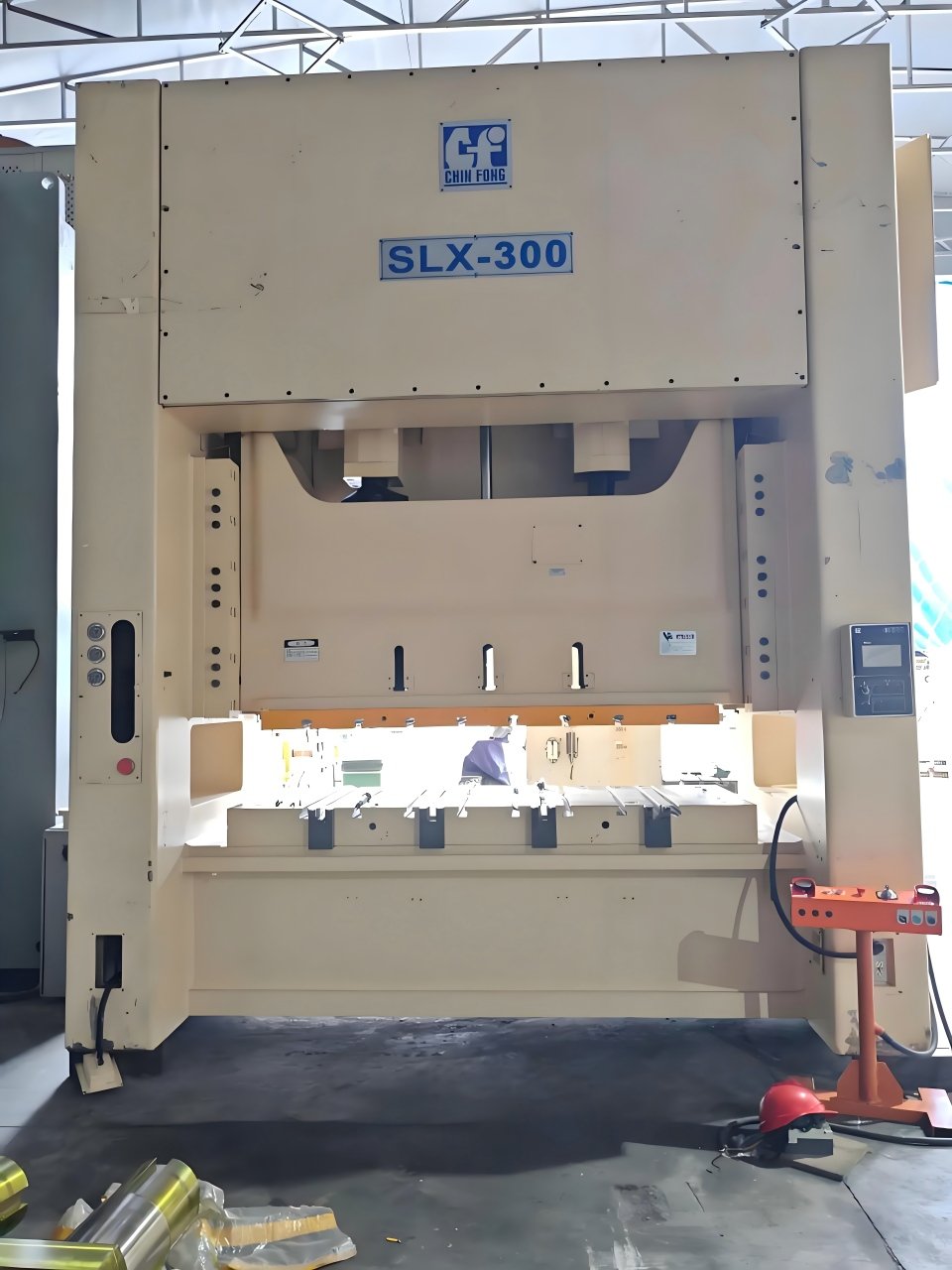

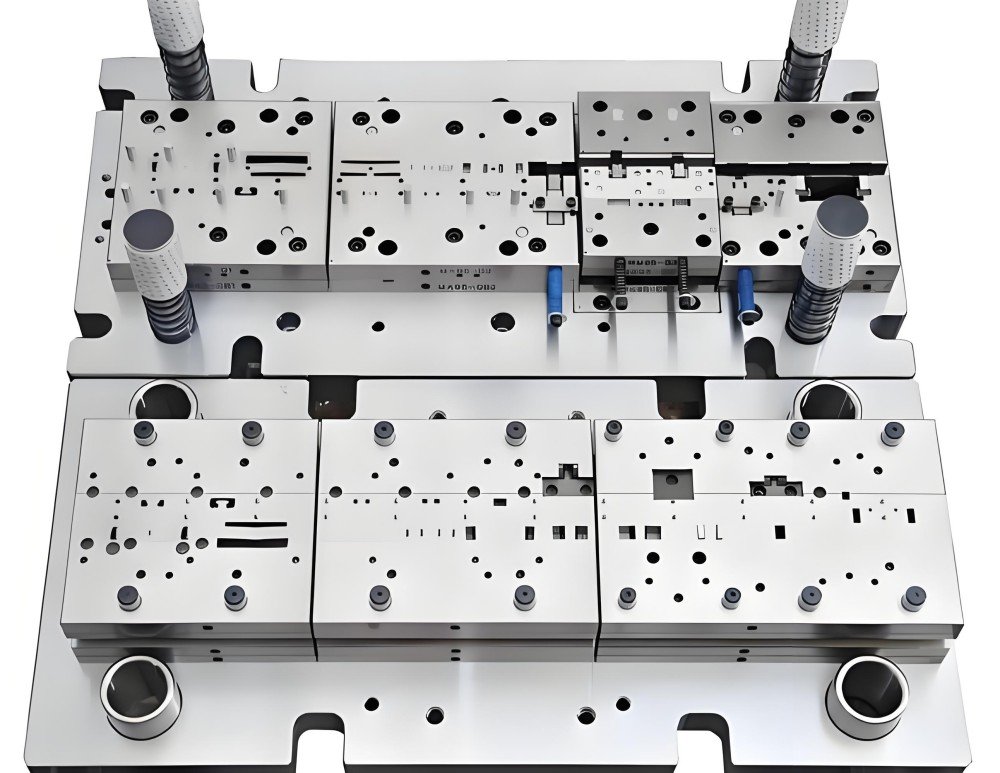

Metal stamping is forming. A flat sheet or coil of metal is fed into a press, where a hardened tool (die) punches, bends, and shapes the material into the part. Producing that die is a one-time tooling job, but once it exists, each individual part is made in seconds.
That single distinction drives almost every decision below.
Volume is usually the deciding variable, because the two processes have opposite cost structures.
CNC machining: low to medium volume
No tooling cost. You pay for material and machine time per part.
First parts are fast. A prototype can often be shipped in days.
Unit price stays relatively flat. The 1st part and the 1,000th part cost roughly the same each.
This makes CNC ideal for prototypes, spare parts, and production runs from 1 to a few thousand pieces.
Metal stamping: medium to high volume
Upfront tooling cost. A progressive or single-station die can cost from a few hundred to several thousand dollars depending on complexity.
Very low per-part cost. Once the die is made, cycle times are measured in seconds and material utilization is high.
Unit price drops sharply as volume rises.
Stamping becomes economical once volumes reach the tens of thousands and up, where the tooling cost is spread thin across many parts.
Rule of thumb: if your annual quantity is under ~5,000–10,000 pieces, CNC is usually cheaper overall. Above ~20,000–50,000, stamping almost always wins. The break-even point in between depends on part size and complexity — send us the drawing and we'll calculate it for your specific part.
Where CNC machining wins
CNC excels when the part has:
1.Complex 3D contours, pockets, and undercuts
2.Tight features on multiple faces (3-, 4-, or 5-axis work)
3.Thick walls or solid, block-like geometry
4.Deep holes, threads, and precise bores
Think precision CNC machined components, titanium automotive parts, and copper components with intricate internal features.
Where metal stamping wins
Stamping is designed for:
1.Thin, flat, or shallow parts (typically 0.1–6 mm sheet)
2.Bends, flanges, and shallow forms
3.Brackets, clips, terminals, washers, nuts, and shielding plates
4.Parts made from coil that can be produced at high speed
If your part is essentially a bent or punched sheet-metal shape, stamping will usually be faster and cheaper than machining the same shape from a solid block.
Factor | CNC Machining | Metal Stamping |
Typical tolerance | ±0.01–0.05 mm | ±0.05–0.15 mm (tighter for fineblanking) |
Best for thickness | Solid blocks, bars, thick sections | Thin sheet / coil |
Material waste | Higher (chips) | Lower (nested from coil) |
Hard materials (titanium, stainless) | Excellent | Possible, but higher die wear |
Surface finish | Excellent as-machined | May need deburring / plating |
CNC holds tighter tolerances and handles
