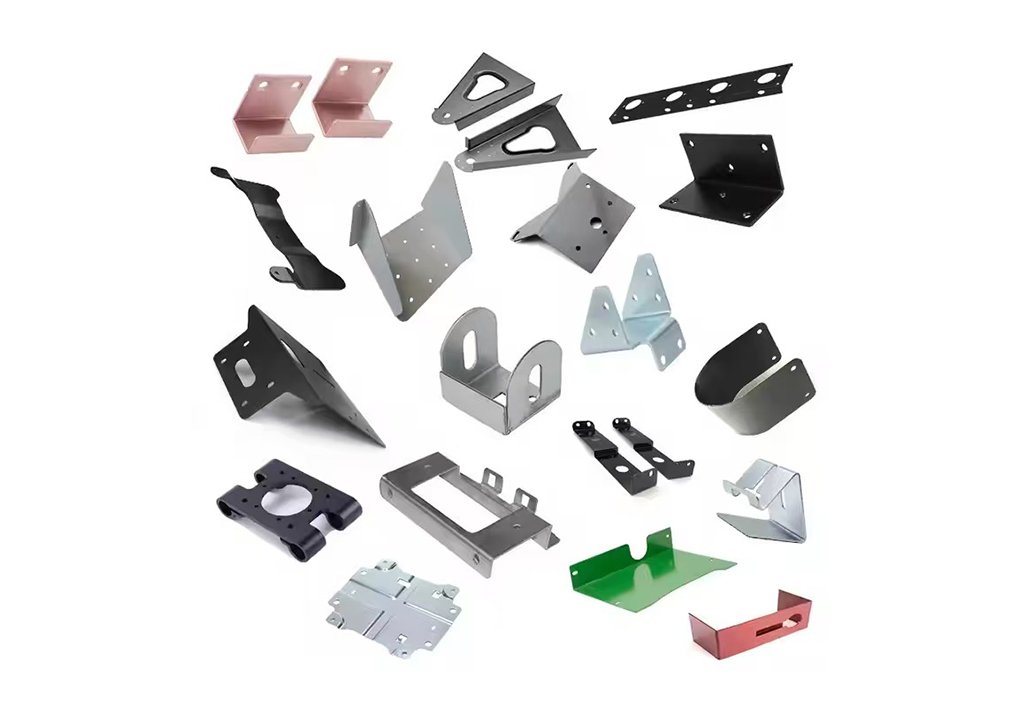

Custom metal stamping is widely used to produce brackets, clips, housings, washers, electrical components, and other metal parts with repeatable shapes and dimensions. The process uses a press and specially designed tooling to cut or form sheet metal according to the required part drawing.
For a stamping project, the part itself determines the manufacturing method. Material, thickness, geometry, tolerances, production quantity, and subsequent assembly all need to be considered before tooling is designed.
The basic process starts with sheet or coil material. A die is installed in the stamping press, and the press applies controlled force to perform operations such as cutting, piercing, bending, or forming.
Simple parts may be produced with a single operation, while more complex components can require several operations. In progressive stamping, the metal strip moves through multiple stations, with each station completing a specific feature before the finished part is separated from the strip.
This approach is useful for parts with multiple holes, bends, tabs, or formed sections that need to be produced consistently.
Blanking and piercing are used to cut the outside profile and create holes or slots. Die clearance needs to match the material to achieve clean edges and controlled burrs.
Bending and forming create angles, flanges, channels, tabs, and other three-dimensional features. Bend radius and material springback need to be considered during tooling design.
Deep drawing forms flat sheet into deeper shapes such as housings, cups, and sleeves. Material formability and die design are particularly important for avoiding wrinkles and cracks.
Embossing and coining create raised, recessed, or detailed features. These operations can be used for reinforcement, positioning, identification, or functional surfaces.
The material should be selected according to both the finished part and the forming process. Common stamping materials include carbon steel, stainless steel, aluminum, copper, brass, bronze, and spring steel.
Material thickness, hardness, ductility, corrosion resistance, conductivity, and surface requirements can all affect the final result. A material that performs well in service may still require changes to the tooling or forming sequence if its stamping characteristics are different.
A good stamping design considers manufacturing requirements from the beginning. Holes placed too close to bends, extremely small bend radii, unnecessary tight tolerances, and complicated features can make production more difficult.
During design review, engineers typically check:
Material and thickness
Bend radii and forming direction
Hole and edge distances
Critical dimensional tolerances
Burr and edge requirements
Surface treatment and finishing
Assembly requirements
These details help determine the appropriate tooling structure and production process before manufacturing begins.
For precision metal stamping, maintaining consistent tooling and material conditions is essential. Press alignment, die condition, feeding accuracy, and material variation can all affect part dimensions.
Quality inspection can include dimensional measurement, visual inspection, material verification, first article inspection, and checks of critical functional features. The inspection method should be based on how the component is used rather than treating every dimension as equally critical.
A typical project begins with drawings or CAD files, followed by review of material, dimensions, tolerances, and production requirements. Tooling is then designed according to the selected stamping process.
After tooling is completed, trial production is used to check forming conditions and part dimensions. Once the required specifications are confirmed, production can proceed with ongoing inspection and tooling maintenance.
For stamped metal components, early communication between the customer and manufacturer is important. Clear drawings and application information make it easier to select suitable materials, tooling methods, and inspection requirements.

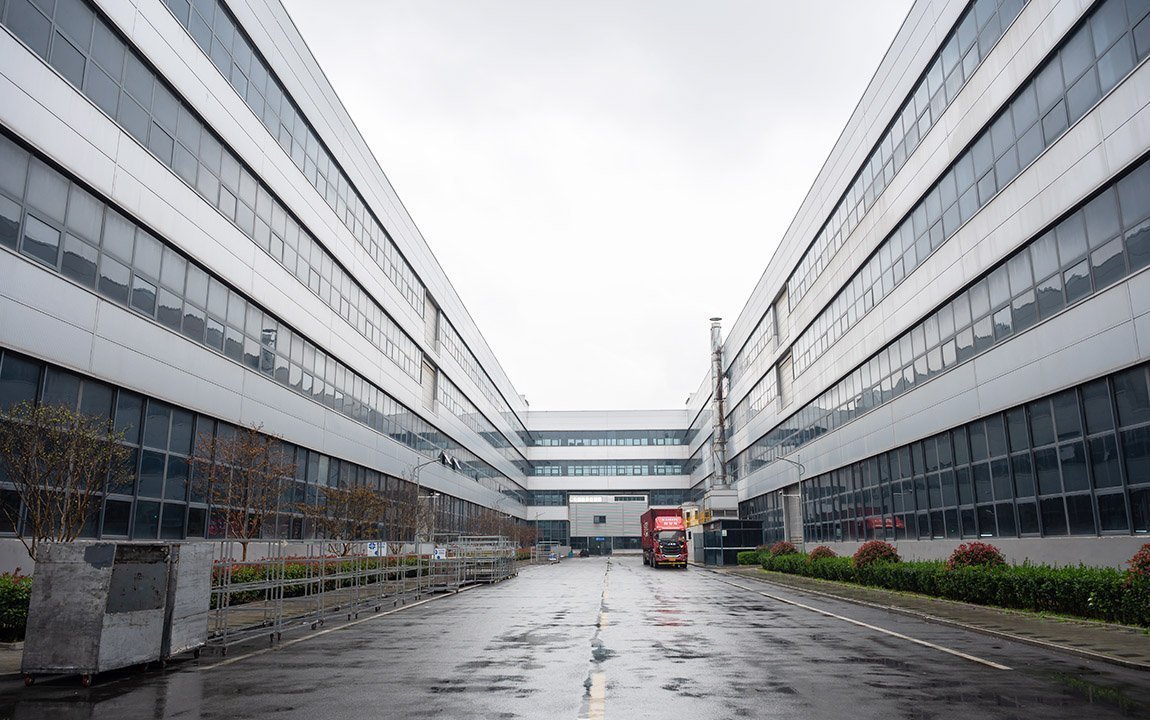

Qingdao Xinlongji Metal Manufacturing Co., Ltd. provides custom metal manufacturing for customers requiring application-specific components. Its manufacturing capabilities cover sheet metal processing, forging and casting, injection molded and die-cast components, as well as mold design and manufacturing.
This range of capabilities allows different component requirements to be evaluated according to the actual production method rather than forcing every part into one process. For custom stamped components, the team can consider the part drawing, material, tooling requirements, and related manufacturing needs before production.
