Humanoid robots are moving from research labs into commercial deployment, and they are placing unusual demands on their metal components. A single robot may contain 40 or more actuated joints, each packed into a space measured in centimeters, yet expected to carry body weight, repeat motion millions of times, and maintain sub-millimeter positioning accuracy.
For mechanical engineers and sourcing teams, that combination of compactness, load, and precision makes humanoid robot components among the most challenging parts to manufacture. This guide breaks down which metal parts matter, what materials suit them, and the tolerances and processes that separate a reliable robot from one that wears out early.
Three engineering pressures converge in a humanoid robot：
Density. Dozens of motors, gearboxes, and sensors must fit inside limbs that resemble human arms and legs. There is no room for bulky brackets or generous clearances.
Dynamic load. Joints accelerate, decelerate, and absorb impact with every step. Components see repeated shock and reversing loads.
Accuracy. Balancing and walking depend on precise alignment. Excess backlash or a slightly off-center bore degrades control and can cause the robot to drift or stumble.
The result is that parts which would be acceptable in stationary industrial equipment often fail in a robot. A few microns of play in a gear bore, or a housing that deflects under load, directly affect motion quality.
Most of the precision machining work concentrates in the drivetrain and structure.
Joint Housings and Harmonic Drive Components

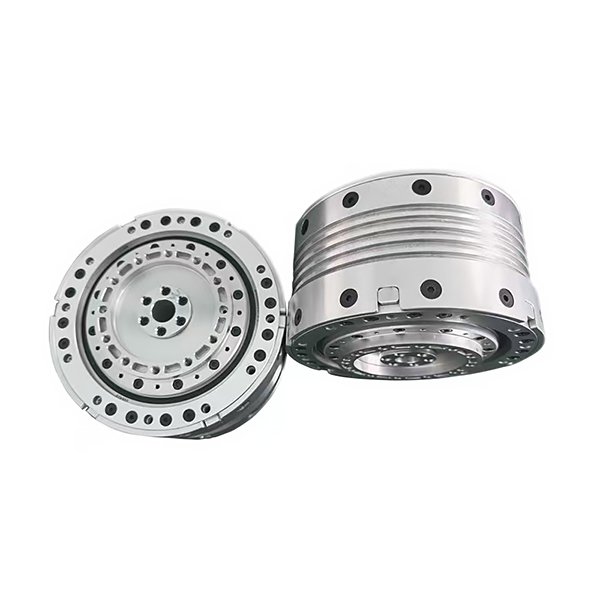

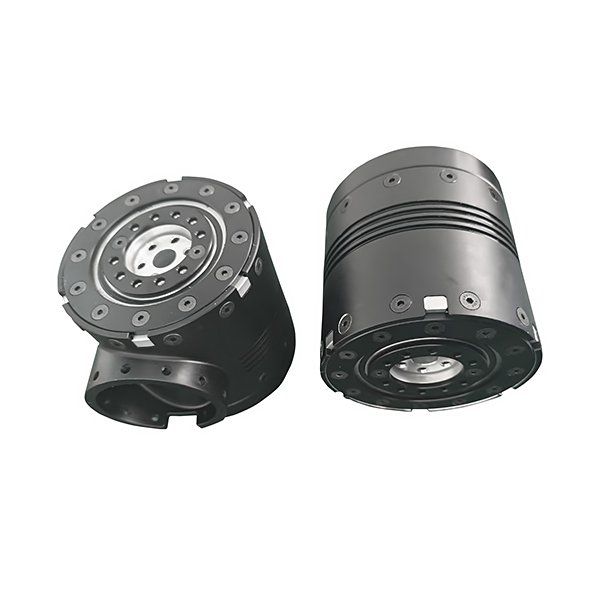

The harmonic (strain-wave) gearbox is the heart of a robot joint. Its housing and the mating structural parts must hold concentricity across several bearing seats while staying light. Any distortion changes gear meshing and increases backlash.
Actuator Shafts and Gear Blanks

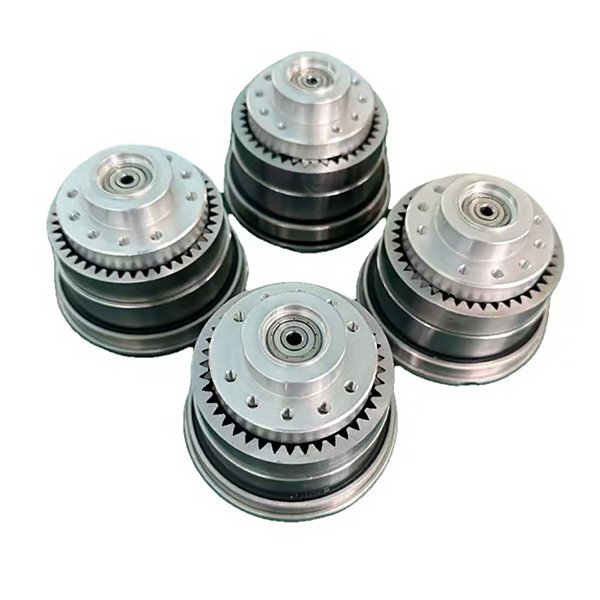

Motor and reducer shafts transmit torque at high rotational speeds. They demand tight diameter tolerances, good surface finish on bearing journals, and often heat treatment for wear resistance.
Structural Brackets and Linkages

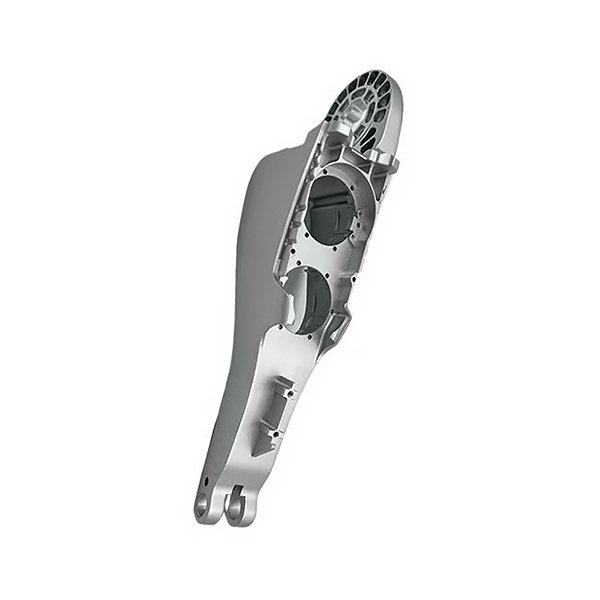

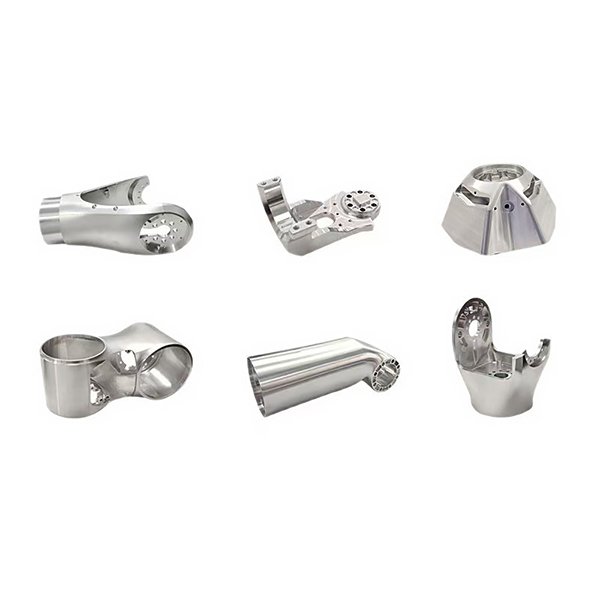

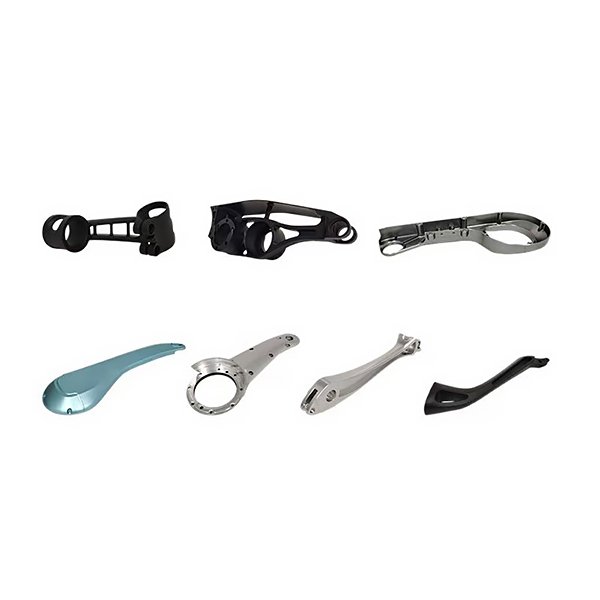

Thigh, calf, and arm linkages connect the joints. They are typically optimized for stiffness-to-weight ratio, with pocketed geometries that remove mass without sacrificing strength.
Material choice is a trade-off between weight, strength, and cost — and robots are unusually sensitive to weight, because every extra kilogram increases motor load and battery drain.
Material | Typical use in a robot | Why it's chosen |
Aluminum alloys (6061, 7075) | Structural brackets, linkages, housings | Light, easy to machine, good stiffness; 7075 for higher strength |
Titanium (Ti-6Al-4V) | High-load joints, fasteners, shafts | Best strength-to-weight ratio, corrosion resistant |
Stainless steel (304/440C) | Bearing races, shafts, wear parts | Hardness and wear resistance |
Copper alloys | Motor conductors, busbars, heat paths | Electrical and thermal conductivity |
Aluminum handles most of the structure. Titanium is reserved for the most heavily loaded or weight-critical joints, where strength-to-weight is decisive. Copper appears in the motor windings’ conductors and in power distribution. Stainless steel covers the high-wear bearing and shaft surfaces.
This is where robotics parts differ sharply from general machined parts.
Tighter Dimensional Tolerances
Critical fits — bearing seats, gear bores, shaft journals — commonly require IT6 to IT7 grades, translating to tolerances of a few micrometers on small dimensions. A loose fit introduces backlash; an over-tight fit causes binding and premature wear.
Fine Surface Finishes
Bearing and sealing surfaces typically need Ra 0.4–0.8 µm to prevent premature wear and leakage. Gear teeth may require grinding or honing after heat treatment.
Geometric Accuracy
Concentricity, perpendicularity, and flatness matter as much as size. A shaft whose journals are not coaxial will run with vibration, noise, and shortened bearing life — even if every individual diameter measures correctly.
Feature | Typical requirement |
Bearing seat diameter | IT5–IT6, Ra ≤ 0.8 µm |
Gear bore concentricity | ≤ 0.01 mm |
Structural mounting faces | Flatness ≤ 0.02 mm |
General structure | IT7–IT8 |
Most robot metal parts start as CNC-machined from billet rather than cast, because low-to-medium volumes and rapid design iteration favor machining over hard tooling.
5-axis CNC milling produces complex joint housings and pocketed linkages in fewer setups, preserving accuracy across features.
CNC turning handles shafts, journals, and rotational parts, often on mill-turn equipment that completes a part in one cycle.
Secondary operations — heat treatment, grinding, anodizing, and passivation — restore hardness after machining and protect surfaces.
Because robot designs evolve quickly, a supplier that can move from a prototype batch to low-volume production without re-tooling is a major advantage. For higher-volume stamped or formed parts such as brackets, shields, and contacts, metal stamping can later replace machined blanks to reduce cost.
Given how sensitive motion is to part accuracy, inspection is not optional:
CMM (coordinate measuring machine) verification of critical dimensions and geometric tolerances
Surface roughness testing on bearing and sealing surfaces
First Article Inspection (FAI) with measured values against every critical feature
Material certificates confirming alloy and heat-treatment condition
Assembly-level checks where the supplier supports fit testing
For series production, PPAP-style documentation and traceability help engineering teams confirm that every batch matches the qualified prototype.
Humanoid robots reward suppliers who combine tight-tolerance machining, genuine engineering feedback, and disciplined inspection. The parts are too interconnected to treat as commodity hardware: a housing that is slightly off, or a shaft with a rough journal, compromises the whole joint.
