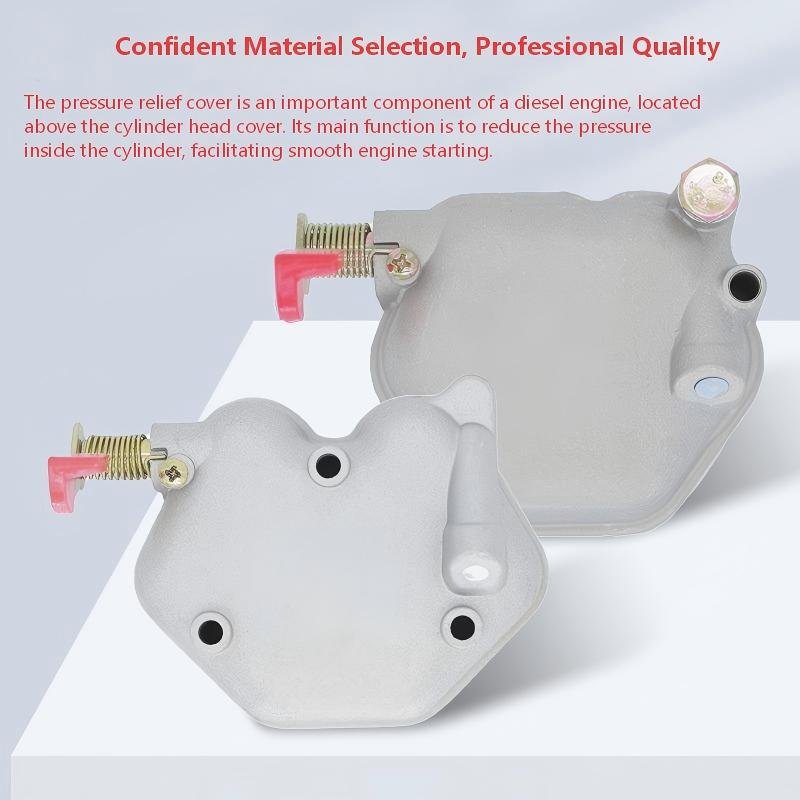

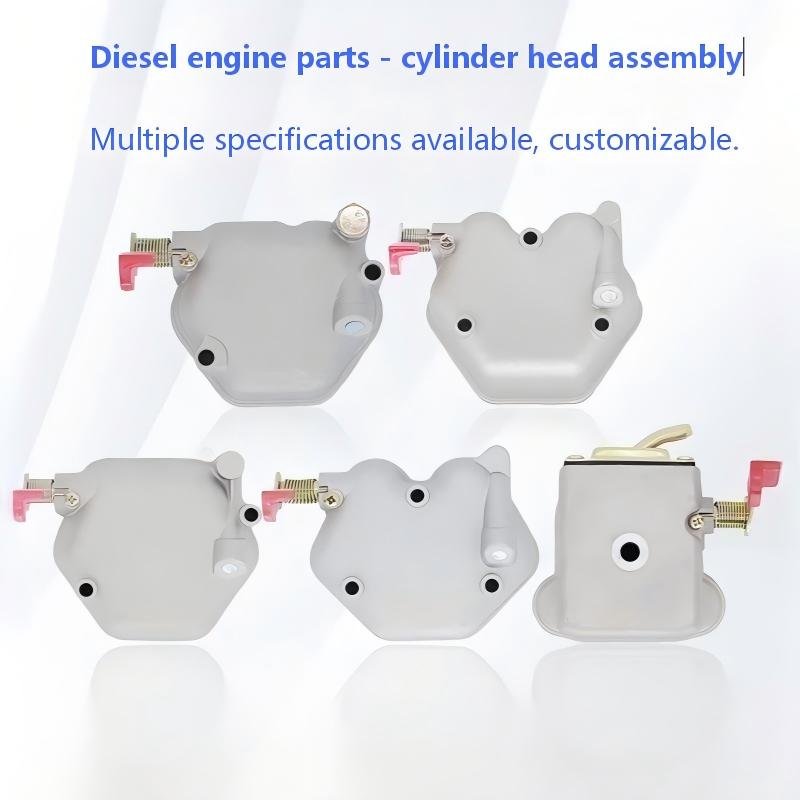

Cast Iron Diesel Engine Cylinder Head Assembly | Precision-Sealed for Heavy-Duty Power Systems
With over 10 years of experience as an integrated manufacturing and foreign trade enterprise, we specialize in producing high-performance cast iron diesel engine cylinder head assemblies. As a critical core component of diesel engines, our cylinder head assemblies are engineered for exceptional sealing performance, heat resistance, and structural rigidity—key to ensuring efficient combustion and reliable power output in heavy-duty applications. Serving B2B clients across agricultural machinery, construction equipment, marine vessels, and industrial power generation globally, we deliver consistent quality backed by strict certifications, professional technical support, and seamless global logistics.

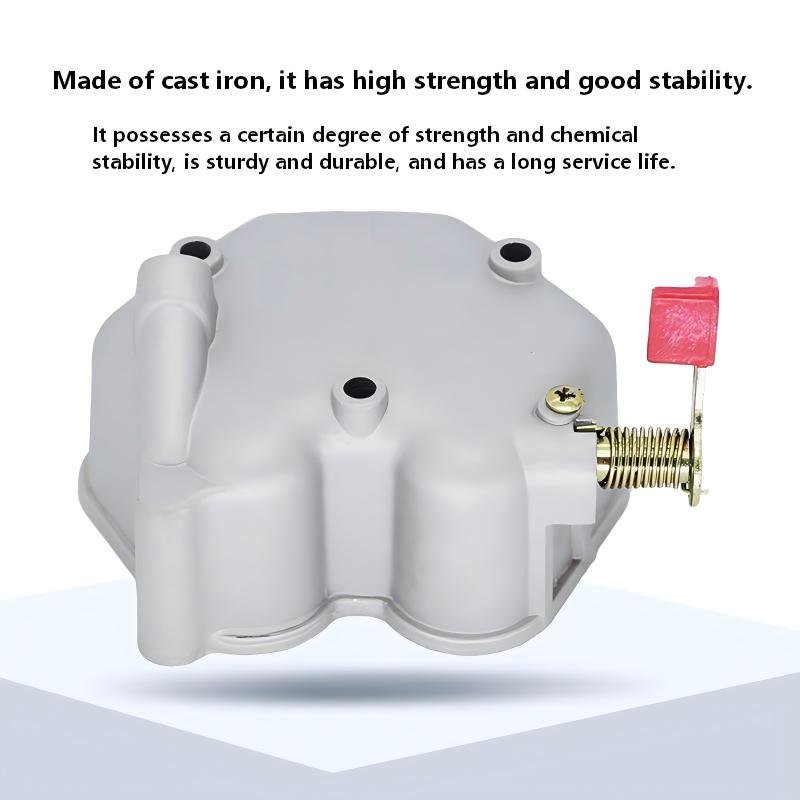

Why Cast Iron for Diesel Engine Cylinder Head Assembly?
Cast iron is the preferred material for diesel engine cylinder head assemblies due to its unique properties that align with harsh engine operating conditions:
• Excellent heat resistance: Maintains structural stability at high temperatures (up to 400℃) during engine operation
• Superior rigidity & wear resistance: Withstands high combustion pressure and frequent mechanical friction
• Good castability: Enables complex internal passages (water jackets, oil galleries) required for heat dissipation and lubrication
• Cost-effectiveness: Balances high performance with competitive pricing for mass production
We primarily use high-grade cast iron materials (gray cast iron HT250/HT300, ductile iron QT500-7) that meet international material standards, with full Material Test Certificates (MTC) provided for each batch.
Standardized Production Process & Supplementary Technologies
Our production process for cast iron cylinder head assemblies is strictly controlled and visualized, ensuring every unit meets precision and performance requirements:
1. Certified Material Sourcing & Pre-Inspection: Raw cast iron is sourced from ISO-certified suppliers. We conduct chemical composition analysis and hardness testing to eliminate material impurities.
2. Precision Sand Casting: Adopt resin sand casting technology to form the cylinder head blank, ensuring accurate shape of complex internal and external structures. Advanced mold ventilation design reduces casting defects.
3. Heat Treatment: Normalization and tempering processes to reduce internal stress, improve material toughness (HB 180-220), and prevent deformation during machining.
4. Precision CNC Machining: Equipped with 20+ sets of CNC lathes, milling machines, and boring machines to process key surfaces (valve seats, injector holes, mating surfaces) with high precision.
5. Assembly & Testing: Assemble valve components, valve guides, and seals; conduct air tightness testing (pressure ≥0.8MPa, no leakage for 30 minutes) and dimensional final inspection.
6. Surface Treatment & Packaging: Anti-rust painting or phosphating treatment to enhance corrosion resistance; shockproof wooden crate packaging with vacuum-sealed inner bags. Complete customs documents are provided for global shipping.
Supplementary processes such as welding (for component repair) and dynamic balance testing (for high-speed engine models) are available to meet custom requirements.
Common Cast Iron Machining Challenges & Our Solutions
We have rich experience in addressing typical challenges in cast iron machining, ensuring stable product quality:
Common Challenges | Our Solutions | Effectiveness |
Casting porosity & shrinkage | Optimize pouring system, control casting temperature (1380-1420℃), and conduct ultrasonic flaw detection before machining | Casting defect rate reduced to ≤0.5% |
Machining deformation due to internal stress | Extend heat treatment time (24 hours), adopt semi-finish machining → aging → finish machining process | Dimensional stability maintained within ±0.01mm |
Poor sealing of mating surfaces | Use precision grinding machines for mating surface processing, control surface roughness Ra≤0.8μm, and conduct 100% air tightness testing | Sealing qualification rate 99.98% |
Product Classification: Industry × Material × Part Type
Our cast iron diesel engine cylinder head assemblies are categorized to match different diesel engine models and industry applications:
Industry | Material Type | Part Type (Cylinder Head Assembly Components) | Key Applications | Remarks |
Agricultural Machinery | Gray Cast Iron HT250 | Cylinder Head Body, Valve Seats, Valve Guides | Diesel tractors, harvesters, agricultural irrigation engines | Dust-proof, suitable for outdoor harsh environments |
Construction Machinery | Ductile Iron QT500-7 | Reinforced Cylinder Head, Injector Holes, Water Jacket Assemblies | Excavator diesel engines, loader engines | High pressure resistance, shock absorption |
Marine Vessels | Gray Cast Iron HT300 | Marine-Specific Cylinder Head, Heat Dissipation Assemblies | Small to medium marine diesel engines | Saltwater corrosion resistance, enhanced heat dissipation |
Industrial Power Generation | Gray Cast Iron HT300 | High-Power Cylinder Head, Valve Train Assemblies | Industrial diesel generators, emergency power supply engines | Long-term stable operation, low noise |
Technical Specifications & Performance Parameters
All parameters are strictly verified by our quality inspection team using calibrated equipment, ensuring consistency and reliability:
Parameter Category | Specifications | Remarks |
Machining Precision | Dimensional tolerance: ±0.01mm; Mating surface flatness: ≤0.005mm/m; Surface roughness: Ra≤1.6μm (machined surfaces), Ra≤0.8μm (mating surfaces) | Verified by Coordinate Measuring Machine (CMM) |
Material Range | Gray Cast Iron: HT250, HT300; Ductile Iron: QT500-7; Custom cast iron grades available upon request | All materials with MTC (Material Test Certificate) |
Surface Treatment Options | Anti-rust Epoxy Painting, Phosphating, Black Oxide Treatment, Chrome Plating (for key components) | RoHS-compliant, corrosion resistance ≥500 hours (salt spray test) |
Minimum/Maximum Dimensions | Minimum size: 200×150×100mm; Maximum size: 800×600×400mm; Maximum weight: 80kg | Custom sizes available for non-standard diesel engine models |
Production Cycle | Standard models (≤300pcs): 12-20 workdays; Custom models (with mold adjustment): 30-45 workdays; Bulk orders (≥2000pcs): 25-35 workdays | Expedited production available for urgent orders (additional charge) |
Our Core Competencies for Global Partners
• Professional Technical Team: 25+ professionals including 10+ senior casting engineers and 20+ CNC machining specialists with 10+ years of experience in diesel engine parts manufacturing. Provide English technical consultation and custom solution design.
• Strong Production Capacity: Annual production capacity of 500,000+ cast iron diesel engine parts (including 80,000+ cylinder head assemblies), supported by advanced casting lines and CNC machining workshops. Ensure on-time delivery for large-batch orders.
• Strict Quality Management System: ISO 9001:2015 and IATF 16949 certified. Implement a 5-stage quality control process (raw material, casting, heat treatment, machining, final assembly/testing) with a 99.98% product qualification rate.
• Integrated Supply Chain: Long-term cooperation with top cast iron suppliers and global logistics partners (DHL, FedEx, Maersk). Ensure stable material supply and cost advantage, with shipping to 150+ countries.
• Reliable After-Sales Guarantee: 1-year warranty for all products. inspection reports, and material certificates upon request.
Customer Success Story: Southeast Asian Agricultural Machinery Manufacturer
A leading Southeast Asian agricultural machinery manufacturer needed custom cast iron cylinder head assemblies for their new high-power diesel tractor engines. Key requirements: HT300 gray cast iron material, air tightness (no leakage under 0.8MPa for 30 minutes), dimensional tolerance ±0.015mm, and delivery within 25 workdays.
Our solution: Optimized the resin sand casting mold to enhance the precision of internal water jackets; adopted "semi-finish machining → 24-hour aging → finish machining" process to eliminate internal stress; used precision grinding machines to process the mating surface, ensuring Ra≤0.8μm.
Result: The cylinder head assemblies passed the client’s strict performance testing (10,000+ hours of continuous operation in high-temperature, dusty agricultural environments without failure). The client has since signed a long-term annual contract, with an annual order volume exceeding 12,000 cylinder head assemblies, citing our product reliability and efficient English communication as key partnership drivers.
Contact Us for Your Cylinder Head Assembly Needs
Whether you need standard or custom cast iron diesel engine cylinder head assemblies, our team is ready to provide tailored solutions. Contact our English-speaking sales team for a free quote, technical consultation, or sample request.
